STEP Vlies (fleece) Dreambox - filter - system - 1000 x 500 mm
STEP Vlies (fleece) Dreambox - filter - system - 1000 x 500 mm
*please email us regarding these units *
PRODUCTS DESCRIPTION

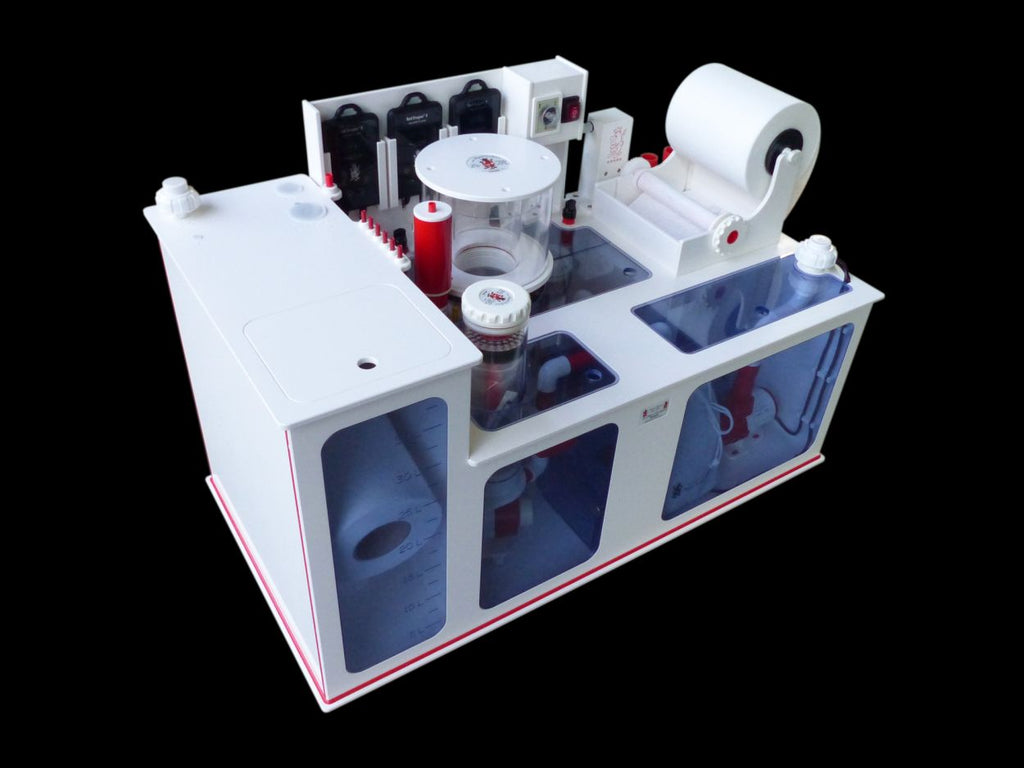

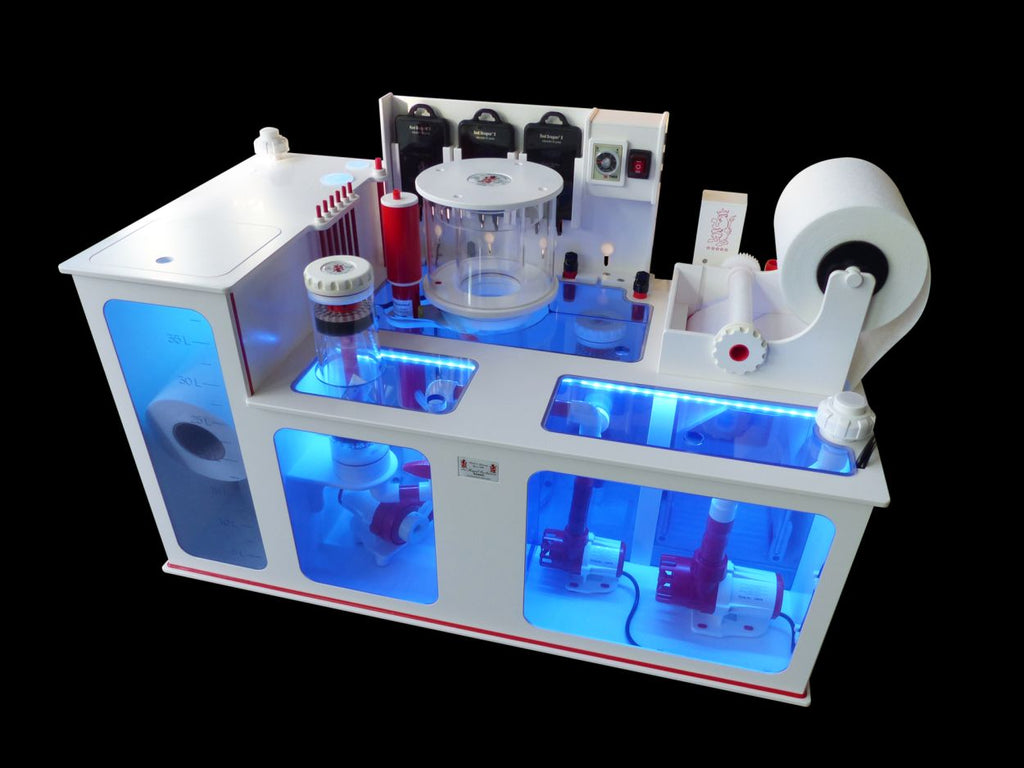

STEP Vlies (fleece) Dreambox® - filter system
1000 x 500 mm
Optional with integrated water tank
Optional with technical equipment
Technical data STEP Vlies (fleece) Dreambox®:
Dimensions: 99,5 cm wide x 49 cm length x 35 cm height (incl. connection pipe 40 cm and incl. cockpit 60 cm)
Volume: ~ 110 Liter with Water tank 40 Liter, without Water tank ~ 150 Liter
1 Vlies(fleece)-roll unit: 1x Vlies roll (standard 1x40µ / 35m) - free selectable
Inlet: 40 / 32 mm red +GF+ pipe
Outlet: 25 mm white screw connection
Which Royal Exclusiv® Protein skimmers fits, depends on the dimension of the Box:
e.g. Mini Bubble King´s 160, 180-Slim, Bubble King® Double Cone 130 - 180
please take a look here as well Data sheet STEP Vlies (fleece) Dreambox and Overview list.
- high quality rigid PVC and Plexiglas® (plexiglass)
- with internal water level regulator
-
hot gas welded not glued,
plastic welding never leak as like glass filter cases with silicone gaskets - significantly sturdily, shock proof and lower weight compared to glass
- 8 mm thickness of PVC and Plexiglas® (plexiglass)
- 100% Made in Germany / Assembly by hand
- extremely noise-dampening by construction
- with DIN connectors/tubes
- fully prepared for the upgrade with media filters
-
Vlies (fleece) rolls in different grain sizes available,
adapt to your own needs and desired properties of water possible - crystal clear fine filtration according to customer's wishes and needs
- Intelligent forced water supply by all chambers
- inside spill safe by integrated CNC milled emergency overflows, even with 100% blockage of the filter vlies (fleece) roll are forwarding into the next Chamber
- Sea-waterproof titanium bolts
- by various options can be upgraded to the high-tech filter tank
- precise CNC milled cover (closed), optional: cover preparation and adaptation for new purchase of a Royal-Exclusiv®skimmers (62,62€)
- 12 Volt DC gear motor is controlled by a time relay, which can be adjusted variably.
- Including Meanwell ballasts and reliable sensor
* Completely covered with warp free material with 8 mm thickness
* LED preparation with 20 mm acrylic pipes
* self pick-up discount: STEP Dreamboxs pickup at factory Wesseling, unpackaged 5%
* 30 Years of experience in PVC filter and skimmer construction
STEP Vlies (fleece) Dreambox_DATA SHEET.pdf Which skimmer fits in which STEP Dreambox? STEP Vlies Brief_instruction automatic version.pdf
Upgrading by the following accessories possible:
LED lighting complete with assembly
Dreambox - cover suitable for Royal Exclusiv® skimmer
Dreambox - cabel holder - complete assembly ex factory
Level switch with slider and bar
* 80 mm cartridge media filter, 2 reactor possible, also 100/125mm on request
* Red Dragon® X media filter pump, 4000 liter/h, 12 Volt DC, adjustable, extreme silence
* Red Dragon® X return pump, 6500 Liter/h, 24 Volt DC, adjustable extreme silence
* 30 Shore Silicone-anti vibration Set
* Bubble King® Double Cone 180 with RDX DC 24V skimmer
* Cover cutting suitable for Bubble King® Double Cone 180
