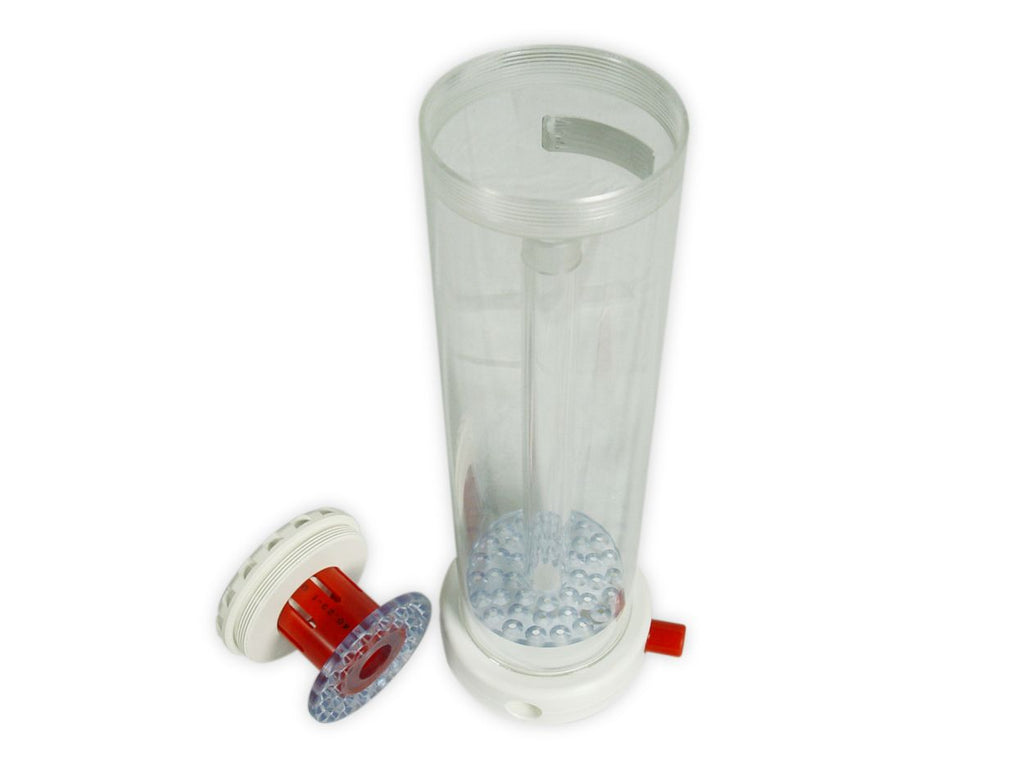

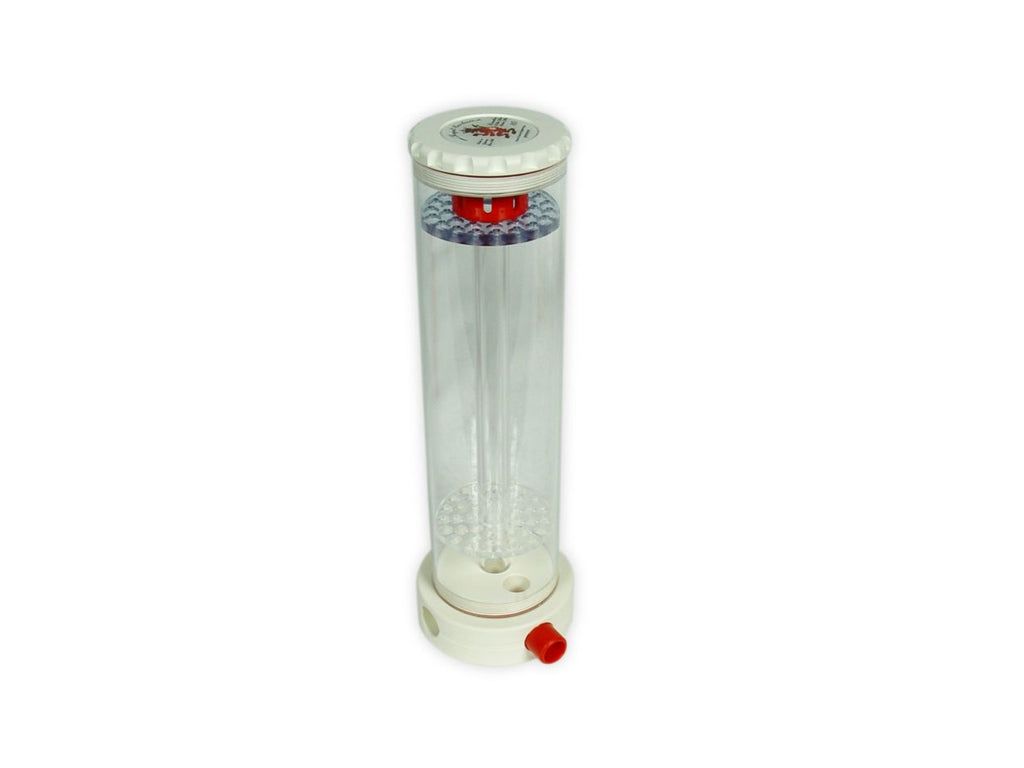

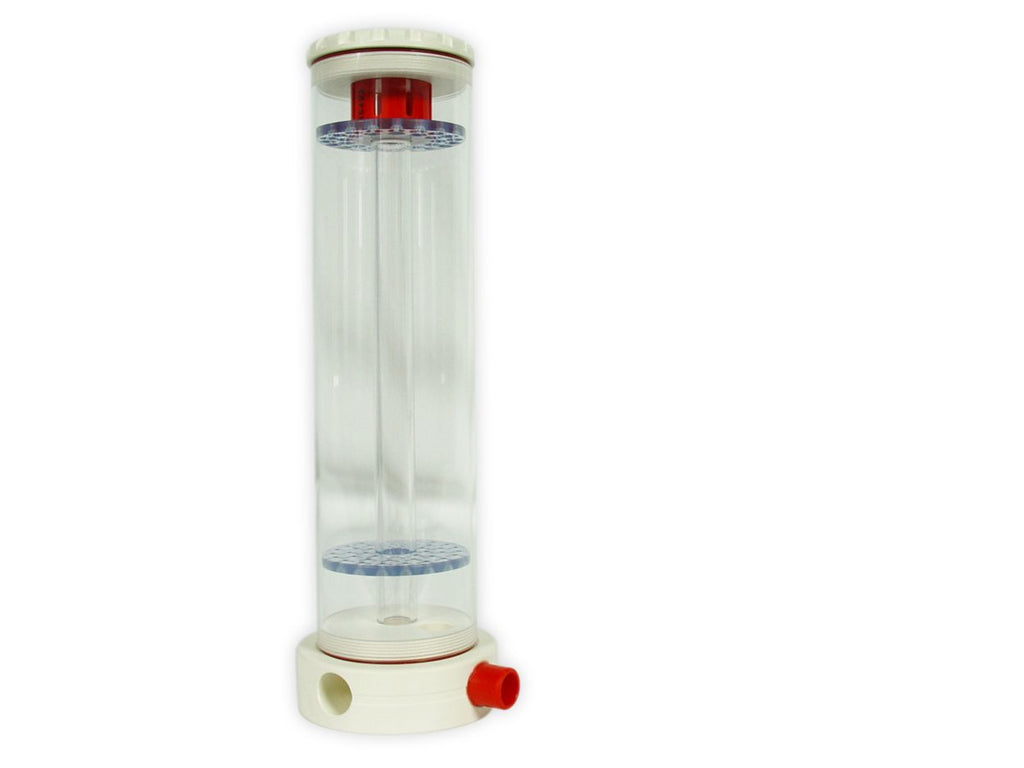

Dreambox - media filter Ø 80mm SpaceSaver DeLuxe 1.5 liter Volume

Dreambox - media filter 1.5 liter SpaceSaver DeLuxe

Technical data:
Dimensions: Ø 80mm(tube) 110mm feet  x ~ 330mm height
Volume:  ~ 1.4 liters  /// 0,7l (media)

Media filter made of PVC an high quality acryl-glass / Plexiglas^®

• including pipe breakthroughs
  outer Ø 20mm
• universal usable as media filter for differ medias
• fine pitch thread above and below, completely dismountable
• on request: assembly into your Dreambox (only by buying a new system)
  optional internal tubbing/piping:  Extra charge + 139,-¤
  optional external tubbing/piping:  Extra charge + 159,-¤
• high quality rigid PVC and Plexiglas^® (plexiglass)
• 100% Made in Germany / assembly by hand
• 30 Years of experience in PVC filter and skimmer construction

Here are the right inlays/foams for this media-filter!

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

The flow rates of the media-filter per hour (recommended):

80mm = 1.5l approx. 500-1000 l/h
100mm = 2.0l approx. 1000-1500 l/h
125mm = 3.5l approx. 2000- 2500 l/h
150mm = 5.0l approx. 2500-3500 l/h

Example: 125mm with a MRD 2500 limited/controlled by of ball valve. So, the motion of the pellets should look like: play video!

The media filter is optimal for the use of RE-Carbon // aktive carbon.

Please contact us for checking the installation of your possible media filters for the feasibility.
